Specifications
|
AnywhereUSB®/2
|
AnywhereUSB®/5
|

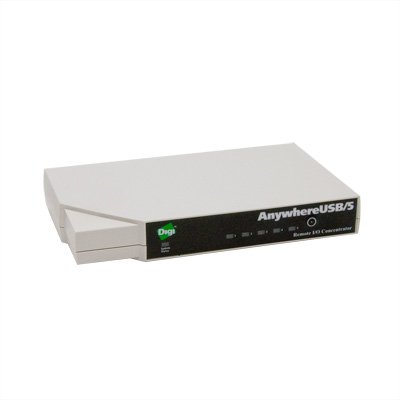

AnywhereUSB®/5M
|
AnywhereUSB®/TS
|
AnywhereUSB®/14
|
|
Interfaces
|
|
10/100Base-T Ethernet
|
1 RJ-45
|
2 RJ-45
|
|
USB
|
2
|
5
|
4
|
14
|
|
Serial
|
N/A
|
4 RS-232 RJ-45
|
1 RS-232 DB9
|
|
Features
|
|
IP Address
|
1 static (fixed) address per
unit
|
|
LEDs
|
System and Port status
|
|
Power Supply
|
AnywhereUSB/2, AnywhereUSB/5
Gen 2, AnywhereUSB TS: Ships with 120-240VAC 50-60 Hz at 5VDC@ 3
amps max w/ locking barrel AnywhereUSB/5 Gen 1: Ships with
100-240VAC 50-60 Hz at 5VDC @ 3 amps max 50-60Hz @ 8 Amps max
|
Includes 2 120-230VAC 50-60
Hz @8 amps max
|
|
Management
|
CLI and AnywhereUSB web
configuration tool (excluding AnywhereUSB/5 Gen 1)
|
|
Other Shared Features
|
Remote configuration
utility; Multiple units supported per server; Field-upgradable
software and firmware; Patented RealPort (serial over IP) and
RealPort USB (USB over IP)
|
|
Serial Data Rates
|
N/A
|
Up to 230 Kbps per port
|
|
USB Downstream Power
|
500 mA per USB device
|
|
USB Compatibility
|
USB 1.0, 1.1, 2.0 (USB 2.0
devices operate at 1.1 speed)
Note: USB storage
devices and USB modems are not supported. Digi’s Edgeport/1
USB-to-serial converter may be used to connect a serial modem.
|
|
Operating Systems
|
Windows®
7, Windows Vista®, Windows Server® 2008, Windows Server 2008 R2,
Windows Server 2003, Windows® XP, Windows XP Embedded
|
|
Multi-Host Connections
|
N/A
|
Yes
|
N/A
|
Yes
|
|
Dimensions
(L x W x H)
|
2.38 in x 3.9 in x 1.0
in
(6.04 cm x 10.0 cm
x 2.54 cm)
|
4.35 in x 7.20 in x 1.03
in
(11.05 cm x 18.29 cm 2.61 cm)
|
4.97 in x 17.00 in x 1.74
in
(12.62 cm x 43.18 cm x 4.42 cm), Rack mountable 1U
|
|
Weight
|
5.0 oz (141.8 g)
|
10.0 oz (283.5 g)
|
40 oz (1134 g)
|
|
Environmental
|
|
Operating Temperature
|
32º F to 140º F (0º C to
60º C)
|
32° F to 131° F
(0° C
to 55° C)
|
|
Storage Temperature
|
-40° F to +185° F (-40° C
to +85° C)
|
|
Relative Humidity
|
0% to 95% (non-condensing)
|
|
Network and Device
Recommendations
|
|
Network Type
|
10/100 Mb switched Ethernet
|
Dual 10/100 Mb switched
Ethernet
|
|
USB Device Types
|
Compatible with bulk or
interrupt type USB devices; Isochronous devices not supported
|
|
Regulatory Approvals
|
|
Safety
|
UL 1950/CSA 2.2 No. 950,
EN60950, IEC-950
|
|
Emissions/Immunity
|
CE, FCC Part 15 (Class B),
EN55022, EN55024
|
